Aluminium lift and slide doors

Luxurious door system made of top-quality material for highest demands

A generous view outside and rooms flooded with natural light - you can make these wishes come true with an individual lift and slide door. Sliding patio doors are popular solutions for the access to the terrace or balcony.

The lift and slide door is a comfortable, user-friendly and space-saving variant. Such systems are usually made of uPVC, timber or aluclad-timber.
However, aluminium frames are often used in upscale residential and public buildings - for a good reason: Due to their high stability, aluminium sliding patio doors offer the possibility of exceptionally large glass surfaces. In addition to a noble and highly customisable design, when choosing such a door you benefit from the unbeatably low maintenance requirements and the above-average durability. Modern aluminium systems can also score when it comes to safety and thermal insulation.

Home comfort at a high level

Lift and slide doors consist of at least one fixed and one movable sash. When the door is closed, the sliding element rests in a perfectly sealed position. By operating the door handle, it is lifted out of this position with the help of special fittings and can now be slid sideways parallel to the fixed sash. On the top and bottom of the lift and slide door there are rails in which the movable door leaf slides on rollers or carriages. This ingenious mechanism not only ensures space-saving and easy opening, but also provides a much better tightness than other sliding patio doors.

An additional advantage of lift and slide systems is the option of having a free passage threshold, at the same level with your floor. This creates a walk-through passage between the living room and the outside area, which is even suitable for wheelchairs.

Such a sliding door is perfect for your:



  • terrace
  • balcony
  • conservatory

Stability combined with thermal insulation

Aluminium lift and slide doors create glass surfaces and large opening widths with simultaneously a slimline appearance. This is due to the material aluminium, which combines a very light weight with enormous stability. You do not need to worry about distortion of the aluminium frame of doors and windows even with extreme temperature fluctuations. The security of the building also benefits from an aluminium lift and slide door. Especially in combination with special glass and security fittings, you get a considerably increased burglary protection.

Even if aluminium as a material doesn’t have a good insulation value, the manufacturers Reynaers and Schüco have counteracted this with innovative sealing systems and insulation technologies. The modern aluminium profiles achieve first-class Uf-values and - especially in combination with the right glazing - can certainly keep up with the excellent thermal insulation of lift and slide doors made of uPVC or timber.

The perfect aluminium lift and slide door for your needs

When choosing your new sliding patio door, you benefit from the highly individual configurability of our aluminium lift and slide systems. There are almost no limits to the quantity, height and width of the sashes. You are also free to determine whether the aluminium sliding patio door should open to the left or right. The profiles are timeless and blend in visually with any architectural style. In order to meet your taste in matters of colour, you have the maximum choice of coatings in various RAL colours.

To give your property a harmonious overall appearance, a design with different colours on the inside and outside of the aluminium patio door is also possible. Aluminium itself is already almost indestructible. In addition, the special coating offers weather protection and protection against other external influences. With an aluminium lift and slide door you get a durable product that requires hardly any maintenance. An occasional wipe of the frame with warm water is completely sufficient.


We offer you a wide range of high-quality profiles from the manufacturers Reynaers and Schüco


Reynaers Hi-Finity

We are one of the few suppliers of the exclusive and fully transparent Hi-Finity system. Since the frames are almost completely embedded in the floor, ceiling and walls, the nearly invisible transition to the outside surroundings can be achieved - for luxurious living dreams. Even a corner that can be opened completely can be realised and ensures that the interior blurs with the surrounding nature. Hi-Finity follows an ultra-slim and minimalist design with a barely visible side line. At the same time, the system is extremely stable, safe and able to support huge, impressive door sashes. To make it even more convenient to operate, the door leaves, which weigh up to 720 kg, can be opened and closed using a concealed motor. You can choose between double glazing and triple glazed panels, glass thicknesses of up to 54 mm are possible. With its excellent insulation, Hi-Finity keeps your home warm in winter and pleasantly cool in summer and is highly energy efficient. In addition, this system is certified to be hurricane proof. It’s a profile which is perfect for contemporary low-energy homes. With a Hi-Finity door you are choosing one of the most elegant and timeless solutions on the sliding door market.

Reynaers Hi-Finity

Reynaers CP 130

Reynaers CP 130

The durable CP 130 can be used to create particularly beautiful and extensive views. On the one hand, this is due to the comfortable, almost level threshold. On the other hand, the CP 130 can optionally be fitted with a completely opening corner. This makes a fixed corner post unnecessary and thus let's your gaze wander without disturbance. Furthermore, the CP 130 is extremely stable and allows the use of glass weighing up to 300 kg.


Reynaers CP 155

With the CP 155 you are opting for a thermally separated and low-threshold system for aluminium sliding patio doors. In the highly insulating version, this profile is even suitable for low-energy houses. With this patio door, you can choose from a wide range of opening options and, in addition to manual operation, electric motor operation is also possible as an option. Even with the slim profiles and a reduced mullion geometry, this profile is extremely stable and allows sash weights of up to 400 kg. This means that the CP 155 can be used to realise the desire for a very large sliding glass door and even a completely open corner. The profile keeps reliably tight in wind and driving rain and can achieve an Uf-value of up to 1.07 W/m²K depending on the frame/sash combination and thickness of the filling. Only durable stainless steel rails and carriages are used for this profile.

Reynaers CP 155

Schüco ASS 70.HI

Schüco ASS 70.HI

The highly insulated ASS 70.HI with a flat threshold is a convenient aluminium profile for lift and slide doors in upmarket residential and commercial buildings. It is extremely stable, permits glazing up to 52 mm thickness and a total sash weight of up to 400 kg. Large-area door solutions are no problem with this system, the individual elements can have dimensions of up to 6500 x 3350 mm. A fully opening corner is also possible. For even greater comfort and security, particularly with door sashes of above-average size, technologies such as Schüco SmartStop and Schüco SmartClose can be used. A special drainage concept ensures increased watertightness in driving rain. Depending on the design, the system can achieve a Uw-value of up to 1.0 W/m²K.


Schüco ASS 77 PD.HI

Door panels measuring up to 3200 x 3500 mm and weighing up to 300 kg can be implemented with this product. With its simultaneously narrow face widths and the 90° corner without mullion, which can be opened completely, the ASS 77 PD.HI (PD = Panorama Design) is ideal for impressive sliding door solutions and breathtaking views. This profile has even won prestigious design awards such as the Red Dot Award and the iF gold Award. The ASS 77 PD.HI is highly thermally insulated (HI = High Insulation) and can achieve an Uw-value of 1.0 W/m²K. Due to the additional insulation zone and the integrated foam insulation bars, the heat is kept inside in winter and your home is prevented from heating up in summer. This makes the ASS 77 PD.HI even suitable for passive houses. The low threshold is suitable for people with limited mobility, and even wheelchairs can pass without difficulty. The ASS 77 PD.HI has concealed frames and locking mechanisms and can surround glass up to 60 mm thickness. You are also well protected from wind and weather, thanks to an optimised drainage system.

Schüco ASS 77 PD.HI

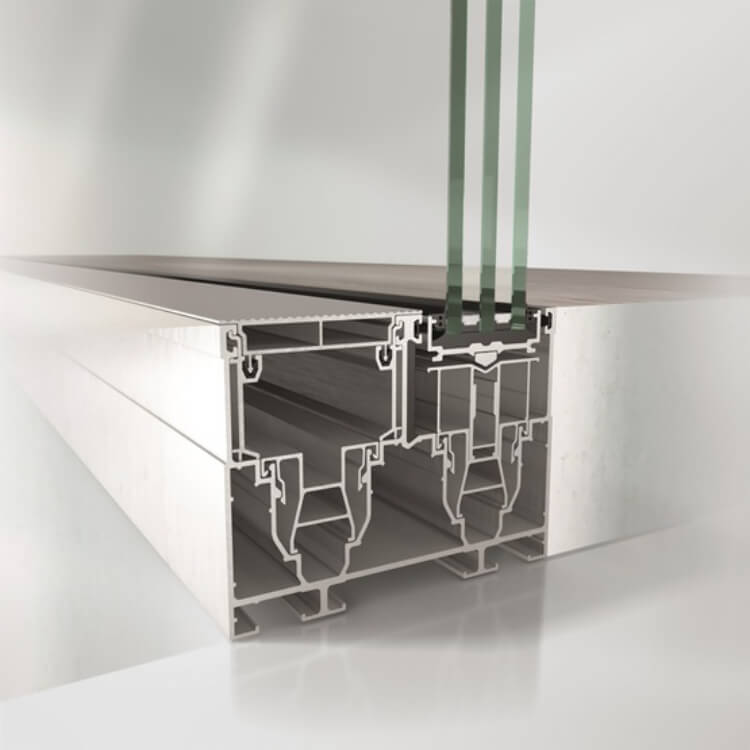

Schüco ASS 77 PD.NI

Schüco ASS 77 PD.NI

Schüco lift and slide doors ASS 77 PD.NI (NI = Non Insulation), as non-insulated profiles with a Uw-value of 1.9 W/m²K and above, are primarily suitable for installation between rooms and in warm climates. Just as with the manufacturer's other sliding patio doors, large and unique door solutions can be created.
