Energeto 8000 Model

Passive house certified energy-efficiency and quality design

Uw - Wert
≥ 0.78

Passivhaus Institute Logo small

Energeto 8000 Model

With its 85 mm profile depth, six chambers and carbon fibre reinforcement, the Energeto 8000 is designed for new construction whose goal is excellent insulation values, including Passive Houses. Although uPVC doesn't begin with the same natural insulating properties as wood, advanced German engineering and manufacturing techniques enable the Energeto 8000 profile to achieve 0.78 W/m2K u-values with triple glazing and warm edge spacers. uPVC is more robust and requires little upkeep from homeowners. The use of multiple chambers and carbon fibre instead of steel make this uPVC profile both environmentally friendly and easy on your purse strings.

Energeto 8000 Window Profile Cross section
Energeto 8000 Window Profile Cross section
Carbon fibre reinforced frame inserts
Carbon fibre reinforced frame inserts

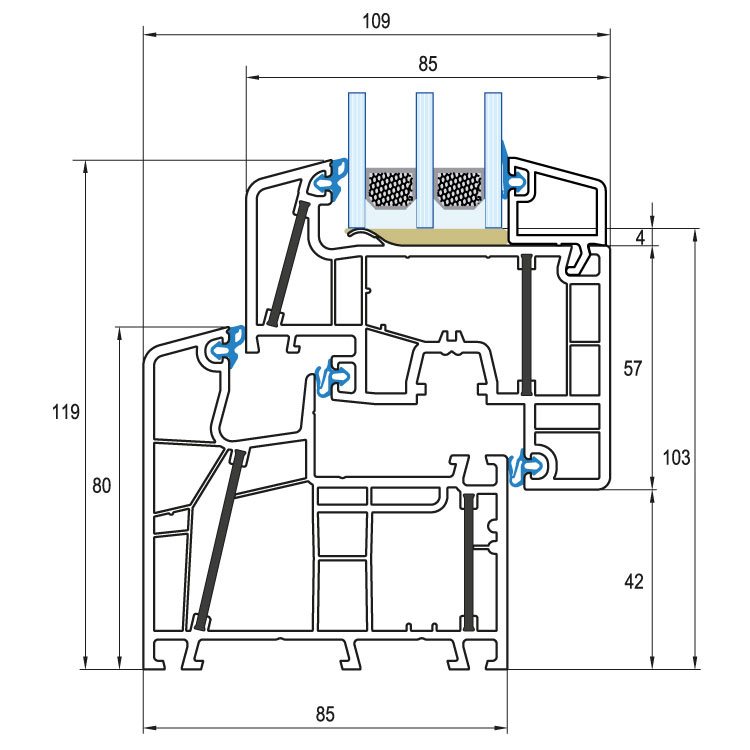

Detailed Cross Section of Energeto 8000
Detailed Cross Section of Energeto 8000

A Detailed View of the Energeto 8000

  • Passive House certified
  • Double and Triple glazing up to 48mm provide U-values of up to 0.78 W/m2K
  • Carbon fibre reinforced Ultradur® inserts reduce thermal bridging
  • An installation depth of 85mm ensures larger chamber systems, improving overall insulation
  • Fully bonded glazing for added thermal performance
  • Quality Winkhaus fittings provide a range of security levels up to RC2
  • European style Tilt & Turn opening
  • Triple weather seal system guarantees improved insulating properties
  • Available in numerous RAL colours and wood decors for both interior and exterior
  • Environmentally friendly - lead, cadmium and barium free


Equipment Options

Glazing Bars
Glazing Bars
Window Colours and Varnishes
Window Colours and Varnishes
Window Handles
Window Handles
Window U-values
Window U-values
Window Glazing
Window Glazing
Burglary Protection
Burglary Protection
Insect Protection
Insect Protection
Roller Shutters
Roller Shutters

First-class Thermal Protection with Multi-Chamber Systems

The larger profile of the Energeto 8000, with its 85 mm frame depth, makes effective use of the multi-chamber design principle. By utilising innovative carbon fibre reinforced inserts, internal chamber volumes are optimised all without the disadvantages of thermal bridging from steel inserts. Fully bonded double or triple glazed units allow Energeto 8000 windows to achieve excellent passive house certified thermal u-values.

Multi-chamber technology and a range of glazing options to achieve u-values of 0.78 W/m2K.

Practically no design restrictions

A huge range of options allow the Energeto 8000 to be customised to individual projects. You can choose from a wide selection of colours and decors for both the inside and outside of the frame, including different colours on each should you desire. Further upgrade options include acoustic insulation glass, concealed hinges, ornamental glass and higher security levels (resistance classes). In addition, Energeto 8000 windows can also be equipped with roller shutters, providing further privacy and burglary protection.

If these many customisation options weren't already enough, uPVC profiles are available at lower prices than wood and aluminium clad options while offering superior thermal performance!

The most popular energy-saving windows at a glance

Want to learn more about energy saving and how you can reduce costs by up to 40%? Then head to our informative page about energy-efficient windows and discover the thermal features that set our window profiles apart.

View energy-saving windows

ENERGETO 5000ED
Energeto 5000
