The IDEAL 8000S System


Modern, Energy Efficient & Affordable

UW - value

≥ 0.81
Aluplast Ideal 8000s

Our Ideal 8000S profiles combine energy efficiency and affordability with the flexibility of extensive customisation to offer homeowners an excellent price-performance ratio. The 8000S comes in a larger 85 mm depth compared to the 5000S making it well suited to new construction, but renovation as well. With the ability to achieve Uw-values of 0.81 W/m2K with triple glazing and warm edge spacers, the 8000S can achieve near passive house values (Passive House is 0.80 or less) saving you money every month and quickly paying for itself. Best of all, this premium performance does not come at a premium price! Additional glazing and fittings features for increased security, soundproofing, privacy and more are available meaning the window can be tailored to your exact size, shape, functional and aesthetic requirements.

Technical Details

  • 85mm installation depth with multiple chambers
  • Excellent thermal insulation with Uw–values of 0.81 W/m2K (reference size: 1230 x 1480mm, triple glazing, warm edge spacer)
  • Double and Triple glazing available in thicknesses from 24 mm to 51 mm (half-recessed up to 59 mm)
  • 3-point sealing – available in papyrus white or black with coloured finishes
  • European style Tilt & Turn opening
  • Sound absorption up to 44dB
  • Quality Winkhaus activPilot fittings with a range of security options incl. standard multipoint locking
  • An array of arches, angles and shapes are possible – even porthole windows
  • Frame up to 98.2% recyclable and 100% free of lead, barium and cadmium
  • Available in all RAL colours and many decors for both the interior and exterior
  • Modern treated uPVC provides durability and resistance to discolouration.

Optional features:

  • Hidden drainage channels
  • Improved security up to and including resistance class two (RC2)
  • ActivPilot Select fittings with discrete concealed hinges
  • ActivPilot Comfort with parallel opening for ventilation
  • Magnetic contact sensors for electronic lock monitoring

The Energy Saving System – The Ideal 8000S

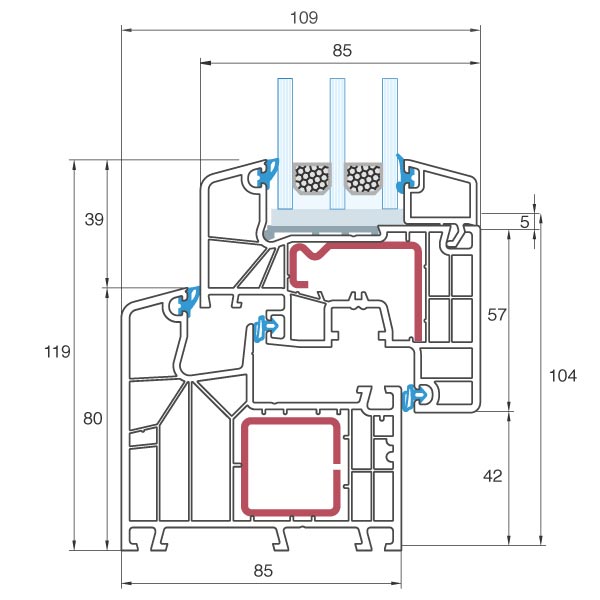

The Ideal 8000S provides a great base for custom energy efficient windows for those who don't quite need Passive House levels of performance. It's thicker profile depth of 85 mm, six internal chambers in the frame and three seals ensure great Uf-values (the u value of the frame itself without glass) to build on with double or triple glazing. The added depth also allows for a greater choice of glazing options in terms of the spacing between individual panes. Triple glazing can be installed up to 59 mm thick overall.

The benefits are reflected in the U-values of the Ideal 8000S. With triple 0.6g glazing and warm edge spacers, these can reach up to 0.81 W/m2K, just 0.01 short of Passive House!

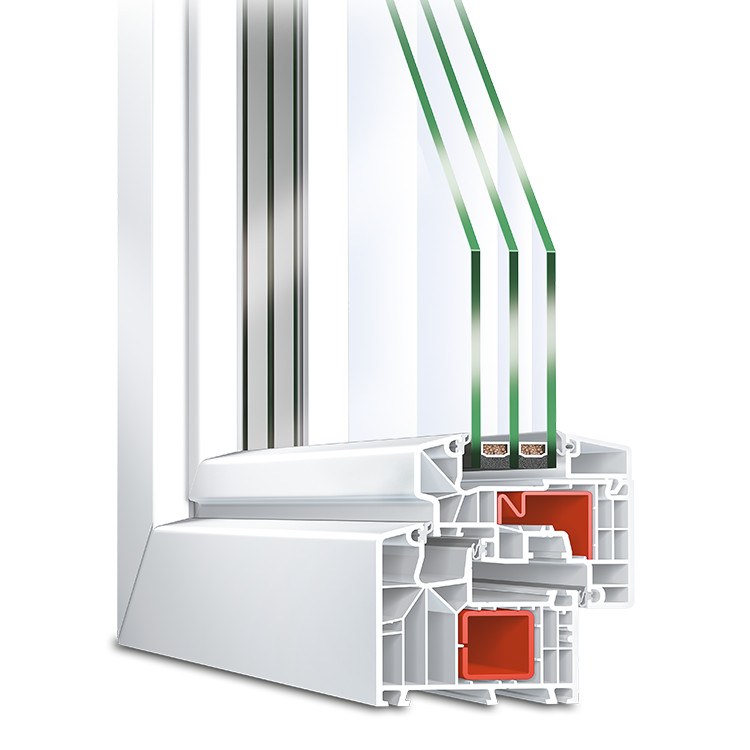

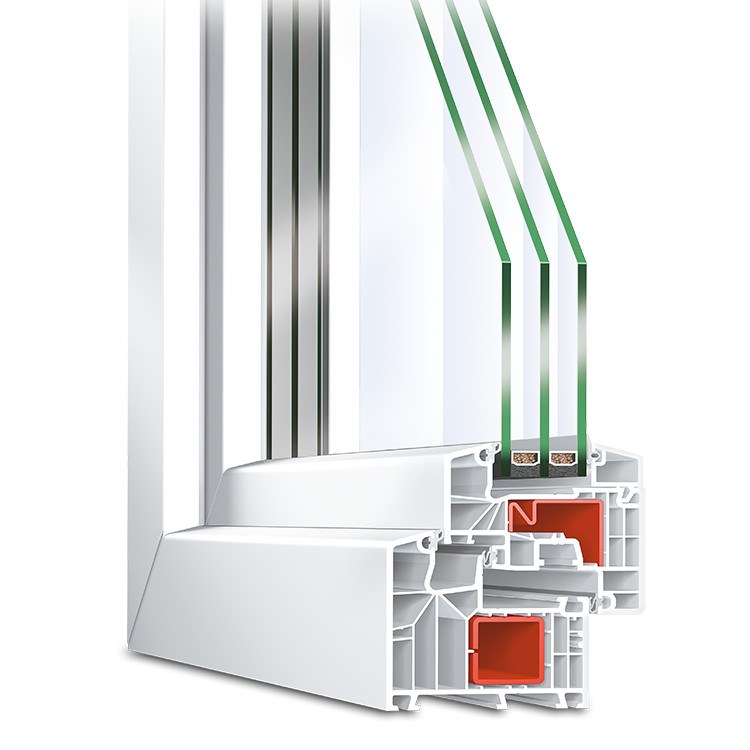

Multi-chambers, three seals and a thicker frame guarantee excellent thermal insulation values

Insulate against Sound too

But the 8000S does more than just insulate against heat loss. Many of the same features that prevent heat from cold air infiltration also reduce the energy of external sound waves, i.e. reducing the amount of noise outside that you hear inside. Sound reduction of up to 44dB (RW) is possible when combined with modern triple glazing.

The general recommendation for urban areas is to aim for a sound protection level of at least 20 – 25 decibels at night and 30 – 35 decibels during the daytime.

Glazing bars add a traditional touch to the design of any window. The Helima bar, for example, is a powder-coated aluminium bar which is installed in the interior space between the glass panes.

Freedom of Design

Your Ideal 8000S window can be easily customised to match your needs. The design options are practically limitless. The available design range covers traditional wood looks and modern aluminium shades in almost any colour. Use our charts to get an overview of the range of options available. Moreover, the frames can be built into both standard and non-standard shapes including triangles, ovals, arches and more.
