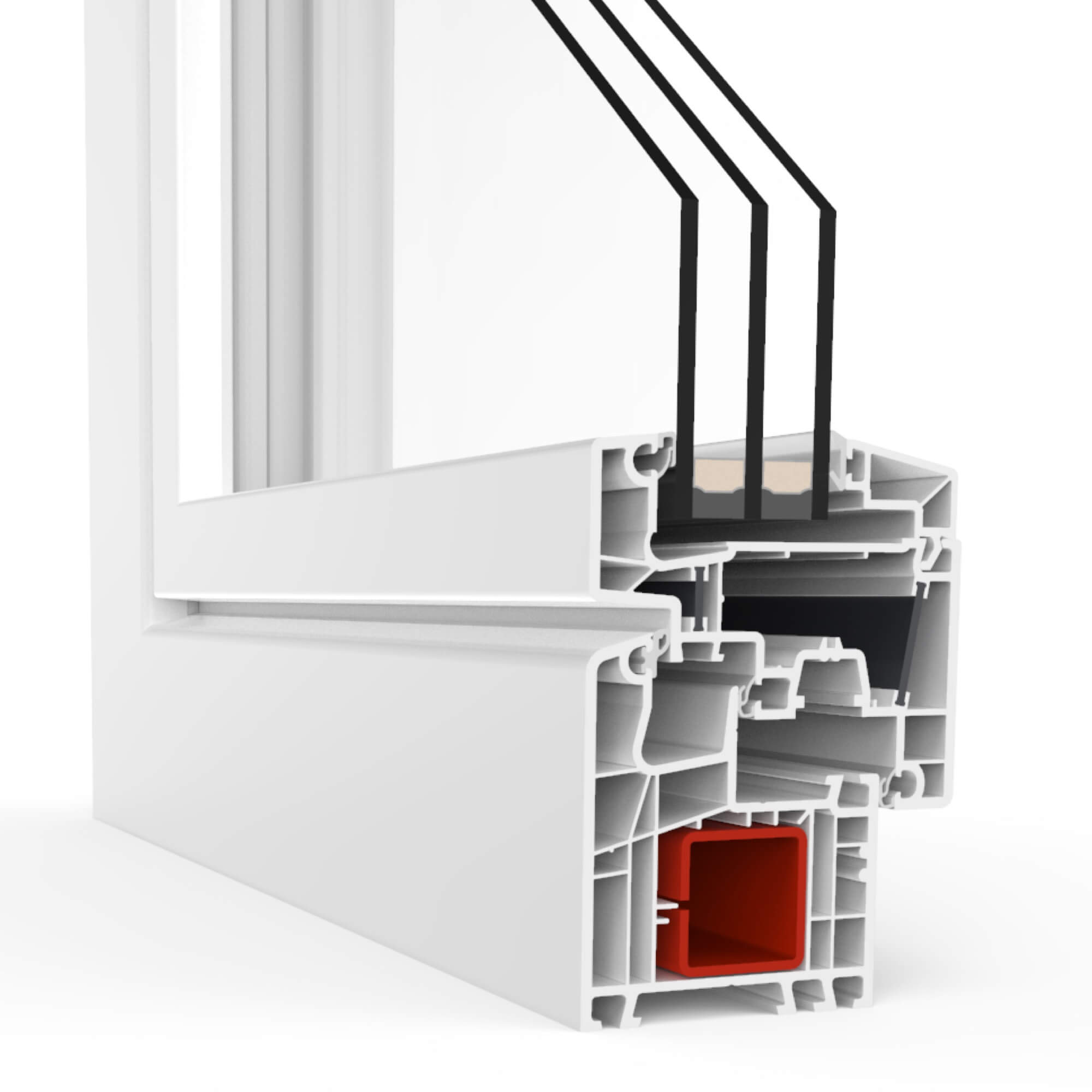

The window profile IDEAL Design by Aluplast has an extremely modern appearance thanks to its slim, flush appearance. You can also rely on contemporary technology: The 5-chamber profile system made of uPVC offers excellent thermal insulation and at the same time reliable burglary protection, which you can increase to your needs. In addition, the versatile material not only allows great freedom of design but also scores points with its excellent price-performance ratio.

The most important facts

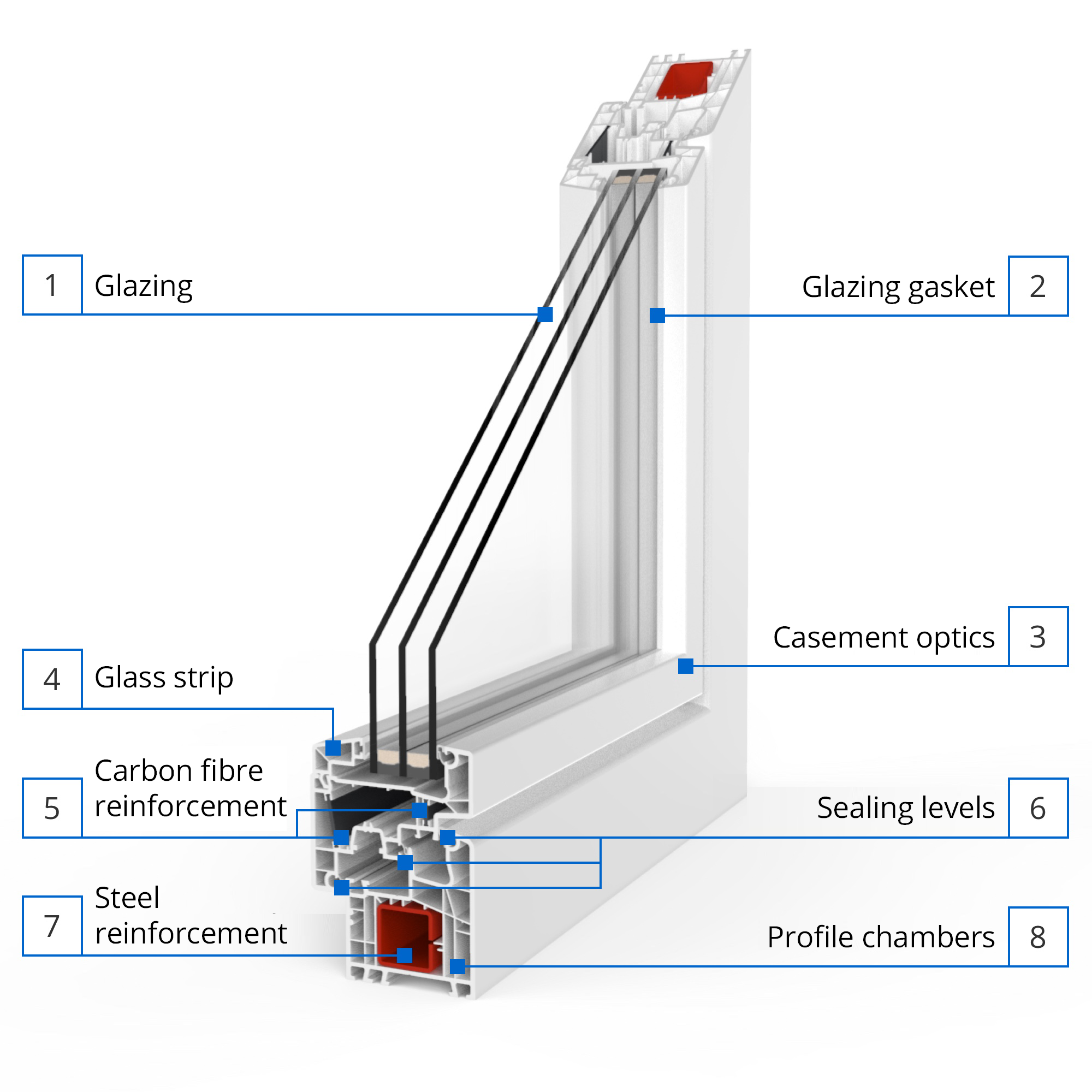

  • 5-chamber profile system with flush, narrow appearance

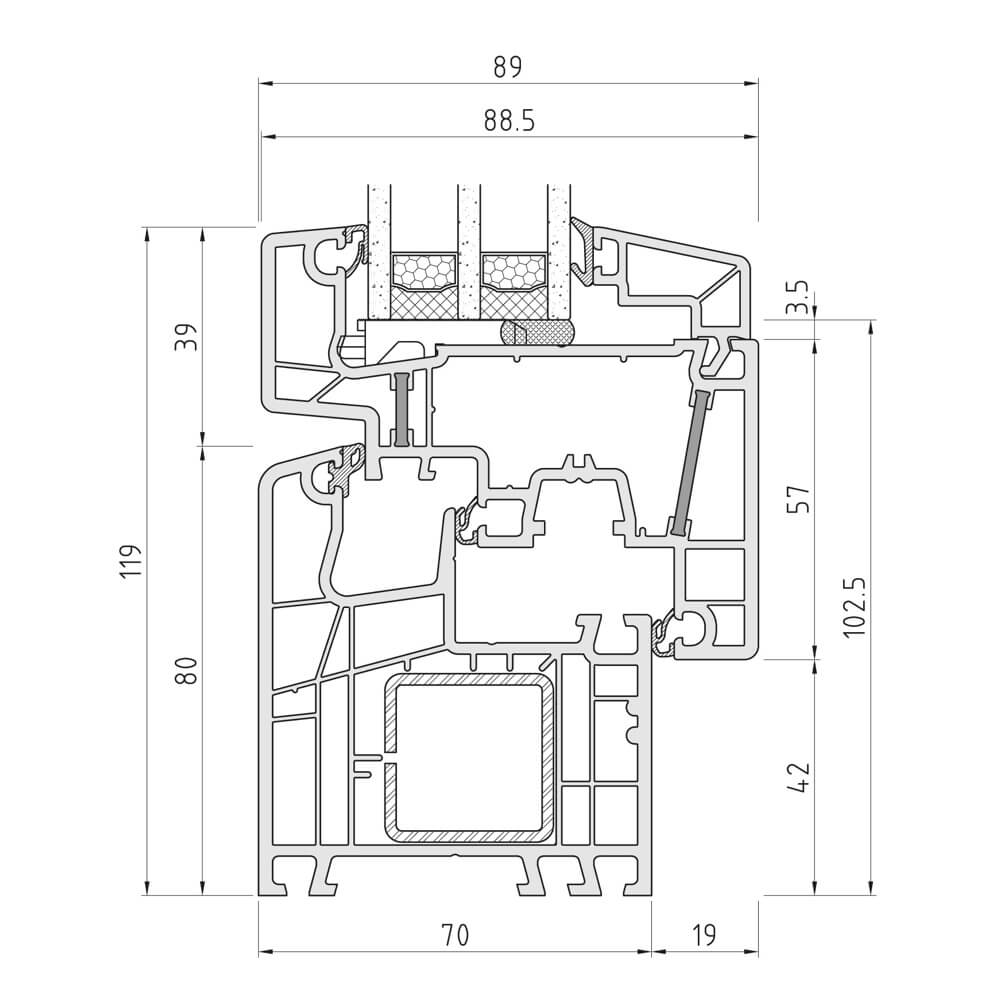

  • Profile construction with 70 mm construction depth
  • Uw-value: basic value 1.25 W/m²K, best value 0.76 W/m²K
  • Uf-value 1.1 W/m²K
  • Middle sealing system with 3 sealing levels
  • Bonding technology for a strong connection between glass and sash
  • Frame with screwed steel insert for more stability
  • Reinforcement of the window sash with PowerDur® technology
  • Exclusively suitable for triple glazing
  • Ug-value with triple glazing up to 0.6 W/m²K
  • Window pane thickness from 36 to 51 mm
  • Turn-tilt fitting with lock against maloperation
  • Quality Winkhaus fittings with a range of security options
  • The window can be optionally upgraded to RC2 standard

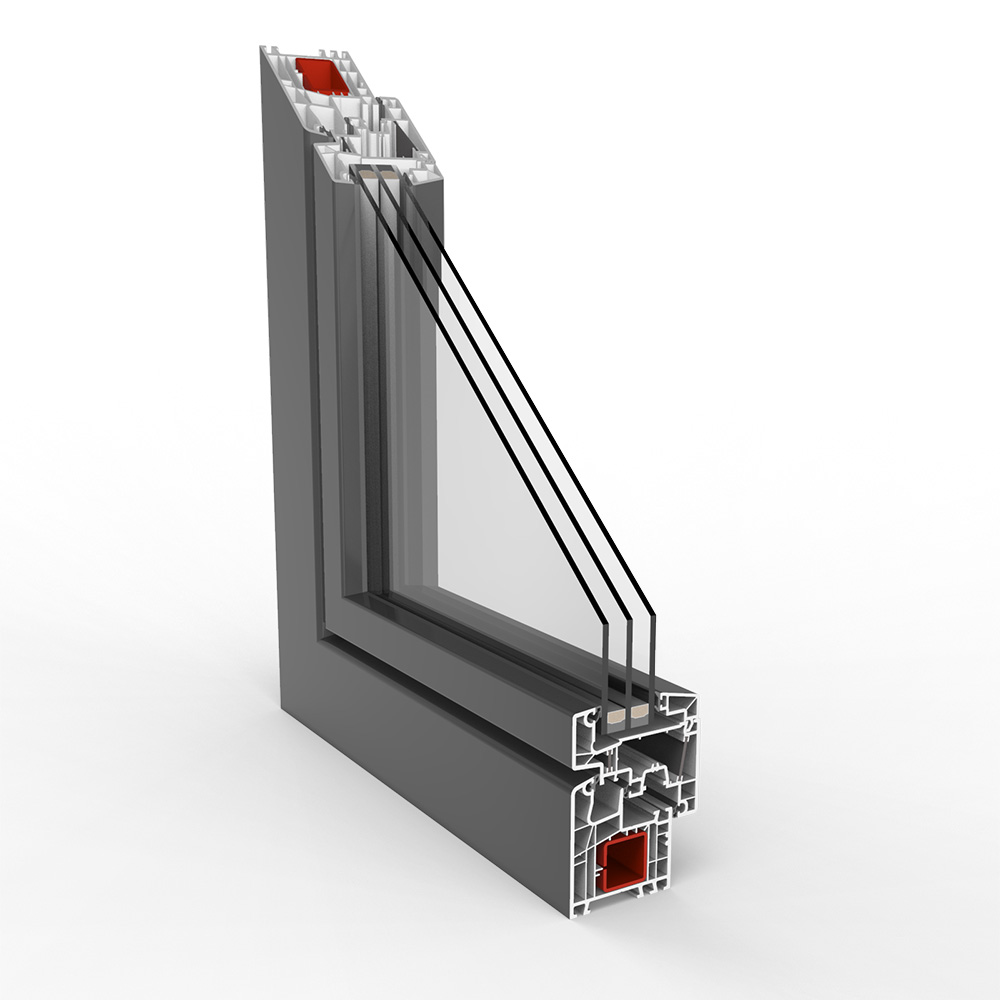

  • Design in white or decor possible
  • Seals for decor: grey or black
  • High weather resistance due to uPVC with advanced additive technology
  • Upgrading with thermal, safety and sound insulation glazing possible

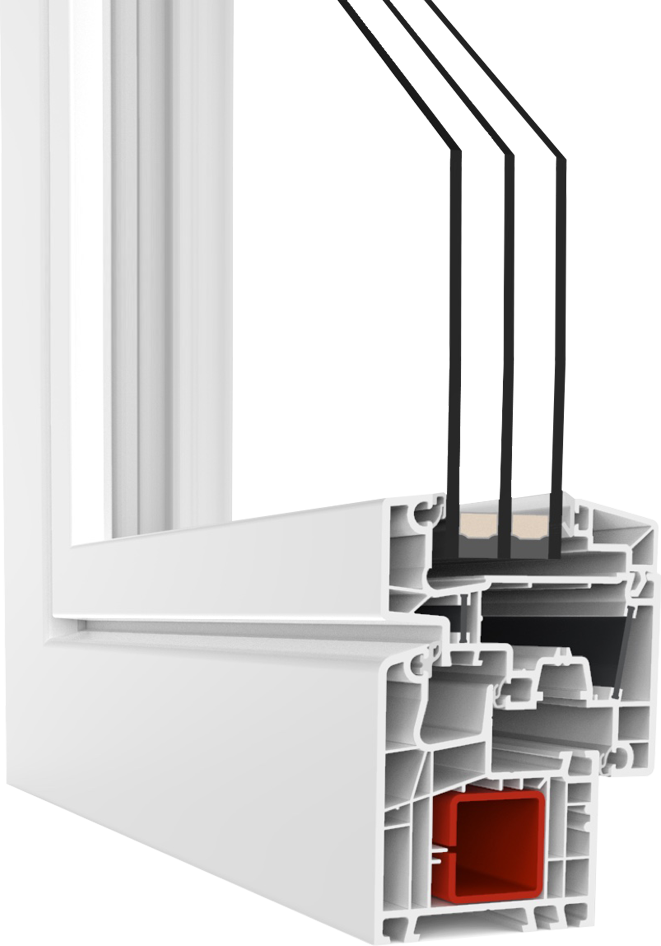

High-quality uPVC profile with an individual look

With the window profile Aluplast IDEAL Design you profit from numerous material advantages and at the same time you can rely on fair prices. Based on the Aluplast IDEAL 5000, this is a profile with a modern sash and geometry, and uPVC enables not only the production of energy-efficient multi-chamber profiles but also an elegant design with a narrow sash.

The IDEAL Design thus finds its place especially on modern facades – both as a window and as a balcony door or convenient Tilt and Slide door. The slender appearance of the profile system is groundbreaking and perfectly complements even minimalist building styles.

A wide range of colours and decors is also available for this purpose, defying all weather conditions. Important for the window colour is a harmonious selection that includes the roof and front door in addition to the facade. Classic white or anthracite, for example, is suitable for almost any building and looks absolutely timeless. On the other hand, a strong colour like blue can also create an exciting contrast.

Thermal insulation at the highest level

Nowadays, thermal insulation plays a decisive role in the choice of suitable windows. After all, insulation also influences the energy consumption in the house and can therefore actually contribute to cost savings.

The uPVC window IDEAL Design by Aluplast is composed of five air chambers with a middle sealing system. In this design there is a third seal between the frame and the casement, which separates the area into two chambers: an outer cold one and an inner warm one. This keeps water and cold air outside, creates a pleasant indoor climate and prevents mould growth.

In addition to the profile, the glazing naturally also contributes to thermal insulation. For this reason, the IDEAL Design window is only available with triple glazing through which Ug-values of up to 0.6 W/m²K can be achieved. The special feature: The window profile retains its modern filigree appearance.

Customised Burglar-resistant equipment

When it comes to safety, the IDEAL Design profile system focuses on proven quality. All fittings come from the traditional manufacturer Winkhaus and convince with their high precision and ease of operation. The activPilot® turn-tilt fitting system makes a significant contribution to burglary protection, as the mushroom head pins fit perfectly into the corresponding security strike plates.

In addition, the profile structure also has a burglar-resistant effect. A screwed steel insert, the glass fibre reinforcement PowerDur® and the special bonding of the frame and glazing ensure stability and high load-bearing capacity with a slim design for the uPVC window IDEAL Design. Both this and the security fittings prevent the window from being easily levered open from outside.

If there is an increased need for security, it is also possible to further upgrade the profile with additional fittings and security glazing. For example, the RC2 resistance class recommended by the police can also be achieved.
